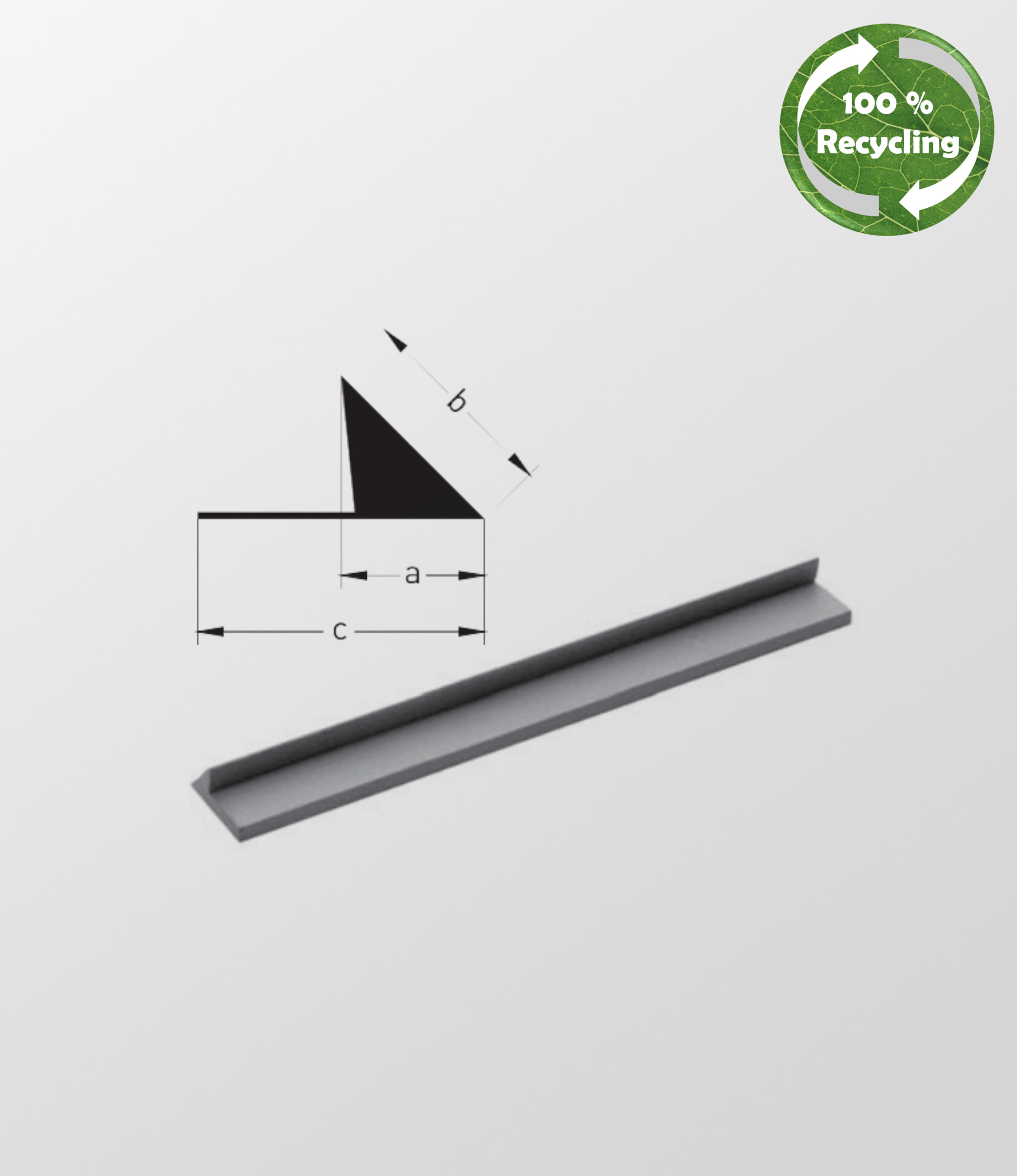

Chamfer edge profile full with nailing flange
Reusable full chamfer edge profile with nailing flange with holes for the production of exposed edges in concrete of about 45°.
Standard length: 2,50 m
Item Number | a Dimension in mm |
b Dimension in mm |
c Dimension in mm |
Bundle PU in m |
Pallet PU in m |
123.042 * | 3,8 | 5 | 23 | 500 | 10.000 |
123.052 * | 5 | 6,5 | 22 | 500 | 10.000 |
123.062 | 6 | 9,5 | 23 | 100 | 6.500 |
123.072 | 7 | 11 | 23 | 100 | 6.000 |
123.102 | 9,5 | 14 | 24 | 100 | 5.400 |
123.103 | 11 | 15 | 27 | 100 | 5.400 |
123.1525 | 15 | 23 | 33 | 100 | 4.800 |
* Item no. 123.042 and 123.052 in cardboard packaging
